Installing all intermediate levers
NOTE:
TECHNICAL INFORMATION
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring.
For further information on possible combinations, see the applicable BMW parts catalogue.
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring.
For further information on possible combinations, see the applicable BMW parts catalogue.

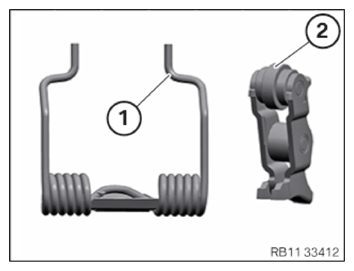

- Version with torsion spring with L-shaped contour and appropriate intermediate lever:
Use the torsion spring (1) with L-shaped contour only in connection with the appropriate intermediate lever (2) .

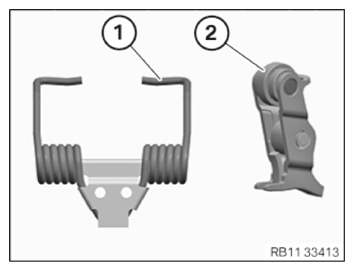

- Version with torsion spring with S-shaped contour and appropriate intermediate lever:
Use the torsion spring (1) with S-shaped contour only in connection with the appropriate intermediate lever (2) .
The description is for one component only. The procedure is identical for all further components.

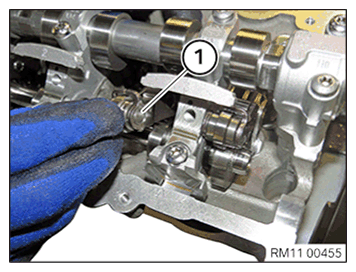

- Install the intermediate lever (1)
.
