Engine - Cylinder Head/Oil Pan - Repair (G30)
>>
11 12 Cylinder Head With Lid
>>
11 12 502 Disassemble and assemble cylinder head (540i, 2017-2020, 540i, 2021-2022, 540i xDrive, 2021-2022)
>>
Removing all gates
Removing all gates

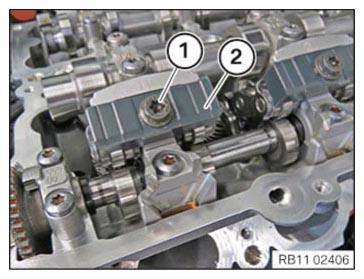

Loosen screw (1).
Remove the gate (2) and place it arranged in order into the special tool
0 495 105 (11 4 480)
.
Repeat the step for all gates.
