Removing the cylinder head from the assembly jig

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

• Remove and install heavy components with the aid of another person/other persons.

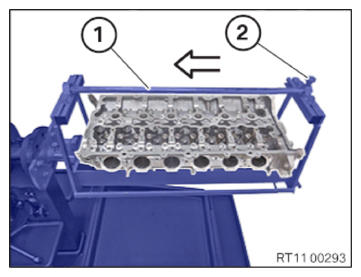

• Loosen screw (2).
• Feed out rod (1) in arrow direction and set aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

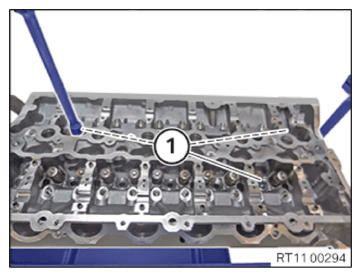

• Release the screws (1) from the special tool 0 494 150 (11 9 440)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Stage the special tool (workshop crane) 2 220 718  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare the special tool 0 490 567 (11 0 020)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and position special tool 0 490 567 (11 0 020)  on the cylinder head (1).
• Position the workshop crane 2 220 718  and connect it to special tool 0 490 567 (11 0 020)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Detach the cylinder head (1) with the workshop crane 2 220 718  and special tool 0 490 567 (11 0 020)  from the device (2), guide it out and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
