Removing the front side radar sensor

NOTE: TECHNICAL INFORMATION
To guarantee the quality of the driver assistance functions in vehicles with concealed radar sensors installed, the component may only be repainted by observing the repair specifications described in the service information "Standards for repair painting with sensor systems".
No stickers or foils (transparent or colored) may be attached in the radiation areas of the radar sensors.
The component may be painted if no radar sensors have been installed.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning light is located on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is located on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with the optional equipment S5ATA or S5AUA.

Preliminary works

Partially remove the front section of the front wheel ARCH COVER

NOTE: Description is for left component only. Procedure on the right side is identical.

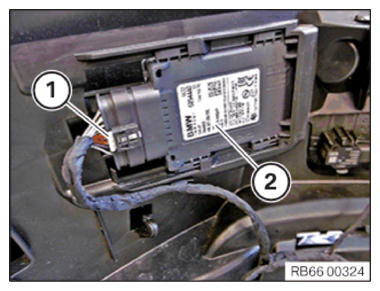

Unlock and disconnect the plug connection (1) on the side radar sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

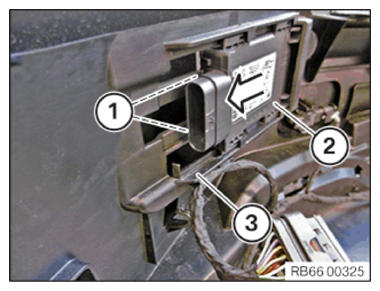

Unlock lock (1).
Push the side radar sensor (2) in the direction of arrow from the holder (3) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
