Replacing oil sump: remount the oil-level sensor
Further information is available.
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION

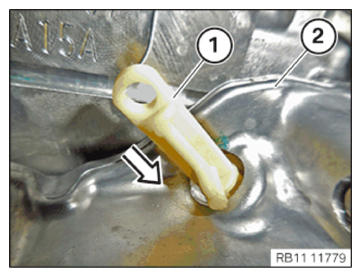

- Feed the seal plugs (1) out of the oil pan (2) in the direction of the arrow
and remove.

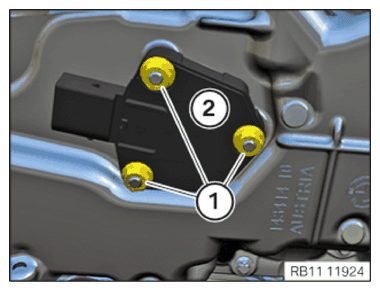

- Loosen nuts (1).
- Feed out and remove the oil-level sensor (2).
- Replace O-ring (1).
Parts: O-ring
- Insert and install the oil-level sensor (2).
- Tighten nuts (1).TIGHTENING TORQUES SPECIFICATION

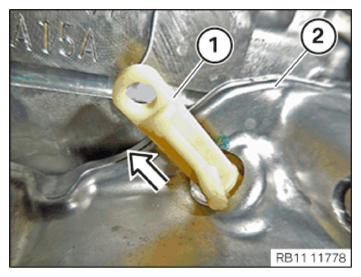

Oil-level sensor to oil sump M6 Joining torque 2.5 Nm Tightening torque 8.5 Nm - Slide the seal plug (1) into the oil pan (2) in the direction of the arrow
and install.
