Replacement: Remount mounted parts
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information, see NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

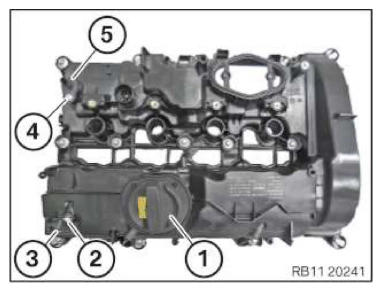

- Release the oil filler cap (1) .
- Loosen screw (2) .
- Feed out and remove the intake camshaft sensor (3) .
- Loosen screw (4) .
- Feed out and remove the exhaust camshaft sensor (5)
.
Prepare the camshaft position sensor

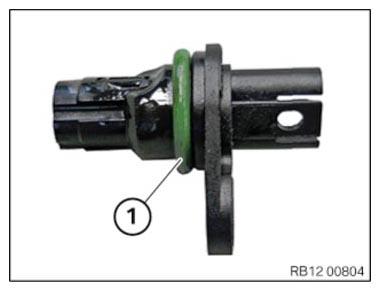

- Check sealing ring (1)
for damage, replace if necessary.

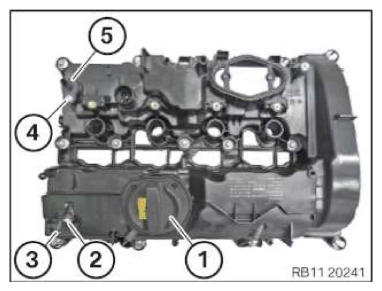

- Insert and install the exhaust camshaft sensor (5) .
- Tighten down screw (4)
.TIGHTENING TORQUES SPECIFICATION
Exhaust camshaft sensor to cylinder head cover TS5x20 Tightening torque: 4 Nm - Insert and install the intake camshaft sensor (3) .
- Tighten down screw (2)
.TIGHTENING TORQUES SPECIFICATION

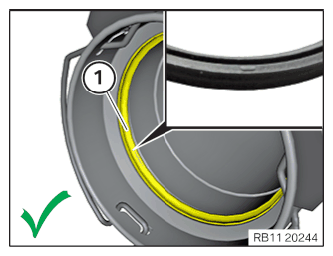

Intake camshaft sensor to cylinder head cover TS5x20 Tightening torque: 4 Nm - Close oil filler cap (1) .
