Screw connection of cylinder head cover, left cylinders 5 to 8

Loosen screws in the order (17) to (1).

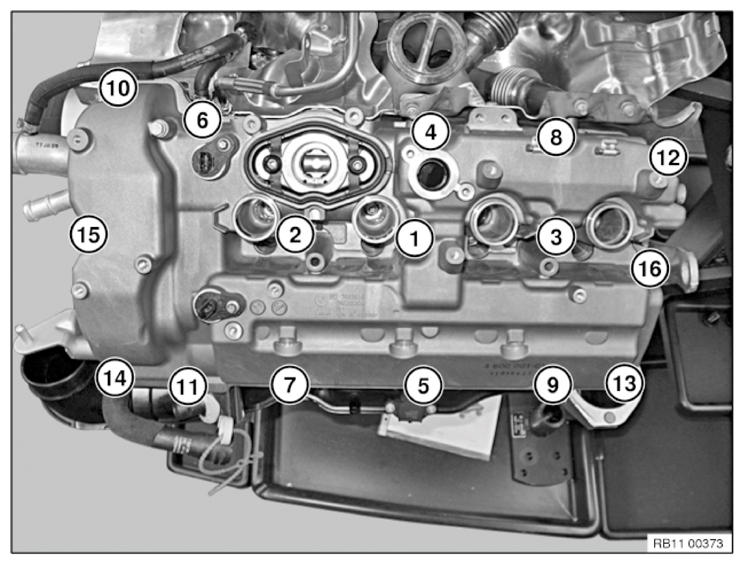

Fig 1: Cylinder Head Cover Screws Loosening Sequence

G09873520

Courtesy of BMW OF NORTH AMERICA, INC.
