Cylinder head cover screw connection cylinder 5 to 8 difficult to access

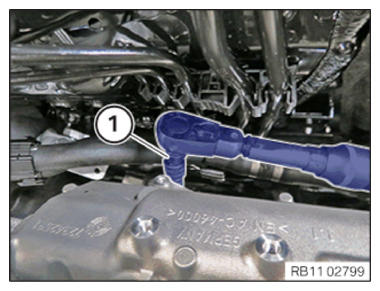

• The cylinder head cover screws found in the rear area of the cylinder head cover can be secured with a wobble joint (1) (swivel).

TIGHTENING TORQUES SPECIFICATION

Cylinder head cover to cylinder head
M6x30 M6x70	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
