Installing heat shield on the cylinder head cover cylinders 5 to 8

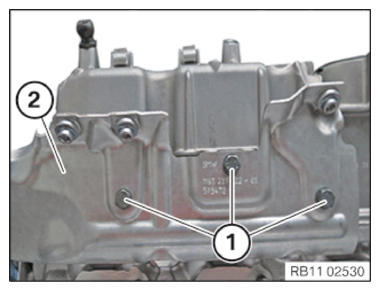

- Position the heat shield (2) and tighten screws (1).
TIGHTENING TORQUES SPECIFICATION
| Heat shield to cylinder head cover |
| M6x12 |
Tightening torque |
10 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
