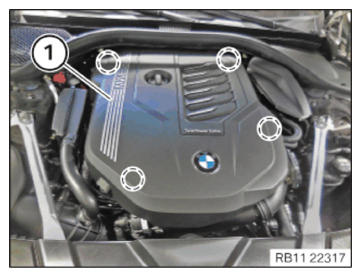

Removing the acoustic cover

WARNING: Hot surfaces.
Risk of burning!
  • Perform all work only on components that have cooled down.
NOTE: RISK OF DAMAGE
Damage to the acoustic cover/design cover.
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover.
  • Disassemble or mount the acoustic cover/design cover carefully.
  • Disassemble or mount snap-lock couplings of the ball pivots one after the other.
  • Disassemble or mount the acoustic cover/design cover only at temperatures > 20°C.
  • Use only distilled water as an auxiliary material during installation, no lubricants.
G14228502Courtesy of BMW OF NORTH AMERICA, INC.
