Engine - Flywheel/Vibration Dampers - Repair (G30)
>>
11 22 Flywheel
>>
11 22 510 Removing and installing/replacing the flywheel (Transmission developed) (M550i xDrive, 2018-2019)
>>
Installing the special tool on the flywheel
Installing the special tool on the flywheel
Preliminary work
Refer to
REMOVING AUTOMATIC TRANSMISSION (ALL-WHEEL DRIVE VEHICLE) (GA8HP75Z)
.

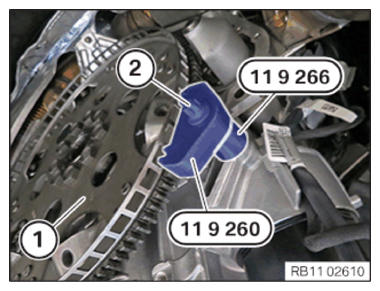

Lock flywheel (1) with special tool
0 493 938 (11 9 260)
.
Secure the special tool
0 493 938 (11 9 260)
using a transmission bolt (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Lock flywheel (1) with special tool
0 493 938 (11 9 260)
.
Secure the special tool
0 493 938 (11 9 260)
using a transmission bolt (2).
Courtesy of BMW OF NORTH AMERICA, INC.
