Engine - Flywheel/Vibration Dampers - Repair (G30)
>>
11 22 Flywheel
>>
11 22 510 Removing and installing/replacing the flywheel (Transmission developed) (M550i xDrive, 2020-2022)
>>
Removing flywheel
Removing flywheel

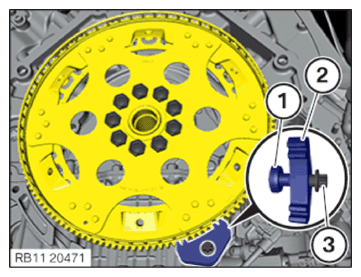

Block flywheel with the special tools
0 494 129 (11 9 263)
(1) and
0 493 938 (11 9 260)
(2) and a transmission bolt M10x55 (3).
Courtesy of BMW OF NORTH AMERICA, INC.

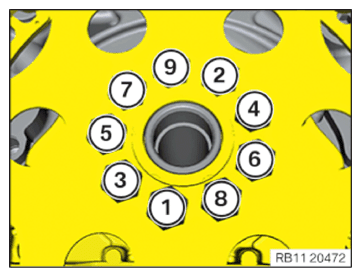

Loosen screws (1) to (9).
Fig 1: Flywheel Screws Loosening Sequence
Courtesy of BMW OF NORTH AMERICA, INC.
Loosen the transmission bolt (3).
Remove special tools
0 494 129 (11 9 263)
(1) and
0 493 938 (11 9 260)
(2).
Remove flywheel.
Courtesy of BMW OF NORTH AMERICA, INC.
