Mount the special tool on the vibration absorber
Preliminary work
- Refer to REMOVE FAN COWL .
- Refer to BLOCK THE BELT TENSIONER WITH THE SPECIAL TOOL .
- Refer to REMOVING DRIVE BELT .
- Refer to REMOVING THE BELT PULLEY .

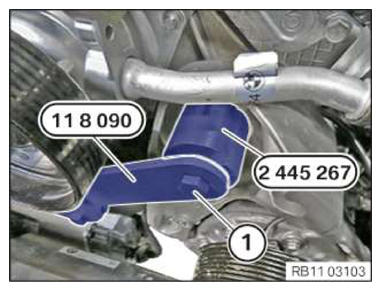

- Secure the special tool 0 496 365 (11 8 090) with the adapter 2 445 267 with the bolt (1).
TIGHTENING TORQUES SPECIFICATION
| Standard screw connection M10 | ||
|---|---|---|
| M10 | Tightening torque | 38 Nm |
