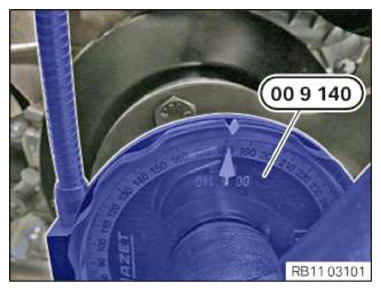

Fasten central bolt with the special tool
- Fasten central bolt with the special tool 0 495 605 (00 9 140)
.
TIGHTENING TORQUES SPECIFICATION
| Hub to crankshaft |
M18x1.5
Replace screws grease screw head see Consumables 4.8 |
Joining torque
1. Angle of rotation
2. Angle of rotation
3. Angle of rotation |
100 Nm
60°
60°
60° |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Remove all special tools.
