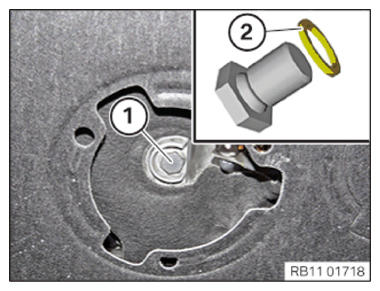

Tightening the oil drain plug
- Replace sealing ring (2).
Parts:
Sealing ring
- Position oil drain plug (1) on the oil sump and tighten.
TIGHTENING TORQUES SPECIFICATION
| Oil drain plug |
M12x16
Replace the sealing ring. |
Tightening torque |
25 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
