Engine - General/Mounting/Compression Check - Repair (G30)
>>
11 00 Engine, General
>>
11 00 010 Drain and top up motor oil (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022)
>>

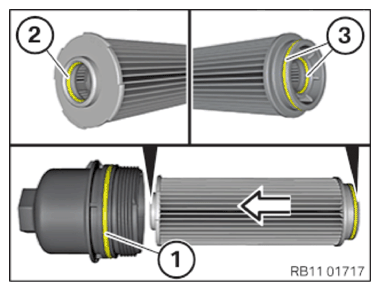

Installing the oil filter element
Installing the oil filter element
Replace O-ring (1) and coat with motor oil.
Parts:
O-ring
Coat O-ring (2) with motor oil.
Coat both O-rings (3) with motor oil.
Push the oil filter element into the oil filter cover (1).
The oil filter element must snap audibly into place.
