Removing the engine from the installation position
NOTE:
TECHNICAL INFORMATION
Lower the engine completely to prevent play before bolting down the engine mount and the engine support bracket.
Lower the engine completely to prevent play before bolting down the engine mount and the engine support bracket.

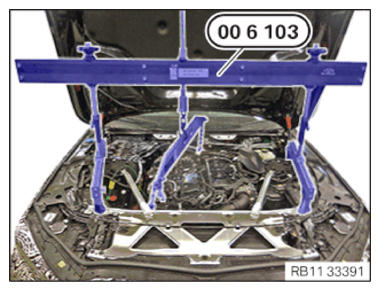

- Lower the combustion engine by turning the special tool 2 361 506 (00 6 103)
until it lies completely on the engine mounts.

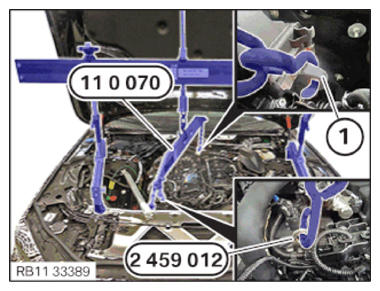

- Feed out special tool 0 490 579 (11 0 070) on special tool 2 459 012 and place to one side.
- Feed out special tool 0 490 579 (11 0 070) on engine mounting bracket (1) at the rear and place to one side.
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.

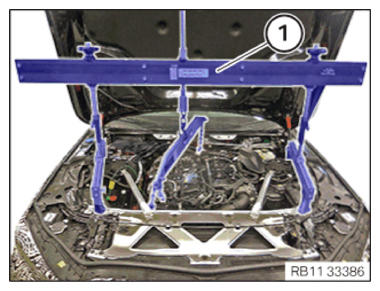

- Remove the engine bridge (1) with a support person.

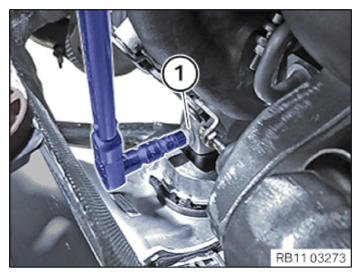

- Tighten screw (1) on right engine support bracket from the top.
TIGHTENING TORQUES SPECIFICATION
| Engine support bracket on the engine mount | ||
| M12x1.5x40 | tightening torque | 100 Nm |

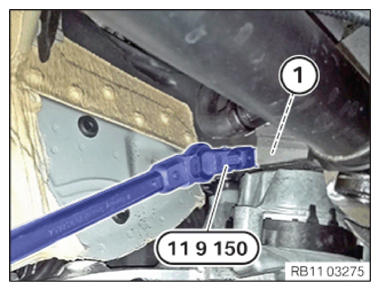

- Tighten screw (1) on left engine mounting bracket using special tool 0 493 751 (11 9 150) from the bottom.
TIGHTENING TORQUES SPECIFICATION
| Engine support bracket on the engine mount | ||
| M12x1.5x40 | tightening torque | 100 Nm |
- Unscrew the bolts (1) of the special tool 2 459 012 .
- Feed out the special tool 2 459 012
at the cylinder head and remove.
- Tighten screws (1) on the left and right.
TIGHTENING TORQUES SPECIFICATION
| Top rear connection to body | ||
| Torx screw M8x30 | tightening torque | 19 Nm |

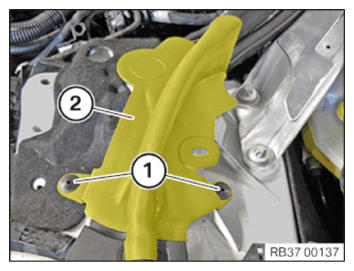

- Position the lateral hood seal (2) at the shock tower.
- Secure the rivet (1).
Follow-up work:
- Refer to INSTALLING REAR UNDERBODY PROTECTION .
- Refer to INSTALLING FUEL DELIVERY LINE .
- Refer to INSTALLING IGNITION COILS .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
- Refer to INSTALLING THE MOUNTING OF THE HOOD SEAL .
- Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP
- Refer to INSTALLING RESONATOR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
