Install the engine support arms on the engine mounts on the left and the right
NOTE:
TECHNICAL INFORMATION
Lower the engine completely to prevent play before bolting down the engine mount and the engine support bracket.
Lower the engine completely to prevent play before bolting down the engine mount and the engine support bracket.
Install the engine support arms on the engine mounts on the left and the right
NOTE:
TECHNICAL INFORMATION
Lower the engine completely to prevent play before bolting down the engine mount and the engine support bracket.
Lower the engine completely to prevent play before bolting down the engine mount and the engine support bracket.

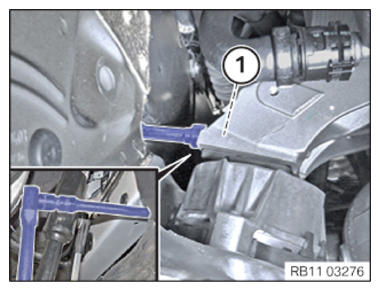

- Tighten screw (1) engine mounting bracket on the right from the top.TIGHTENING TORQUES SPECIFICATION
Engine support bracket on the engine mount M12x1.5x40 tightening torque 100 Nm - Tighten the screw (1) the left engine mounting bracket from the outside (wheel arch).
TIGHTENING TORQUES SPECIFICATION
| Engine support bracket on the engine mount | ||
|---|---|---|
| M12x1.5x40 | tightening torque | 100 Nm |
Follow-up work:
- Refer to INSTALLING THE THRUST FIELD .
- Refer to INSTALLING REAR UNDERBODY PROTECTION .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
- Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
- Refer to ATTACHING THE FRONT LEFT WHEEL .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP
- Refer to INSTALLING THE RESONATOR WITH THE TOP CLEAN AIR PIPE .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
- Refer to RESETTING THE TIRE PRESSURE MONITOR .
