Engine - Housing Cover - Repair (G30)
>>
11 14 Housing Cover
>>
11 14 110 Removing and installing/sealing or replacing lower timing case cover (M550i xDrive, 2018-2019)
>>
Checking the jump guard
Checking the jump guard

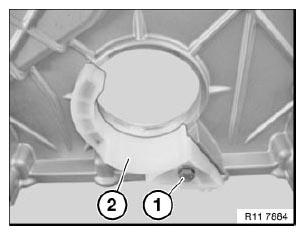

Loosen the screw (1) and remove the jump guard (2).
Courtesy of BMW OF NORTH AMERICA, INC.
