Engine - Housing Cover - Repair (G30)
>>
11 14 Housing Cover
>>
11 14 110 Removing and installing/sealing or replacing lower timing case cover (M550i xDrive, 2018-2019)
>>
Mounting the beaded metal gasket
Mounting the beaded metal gasket

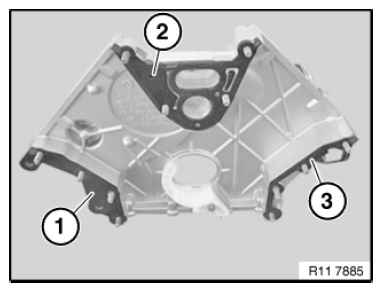

Mount the beaded metal gasket (1), (2) and (3).
Courtesy of BMW OF NORTH AMERICA, INC.
