Install the radial shaft seal with the special tool

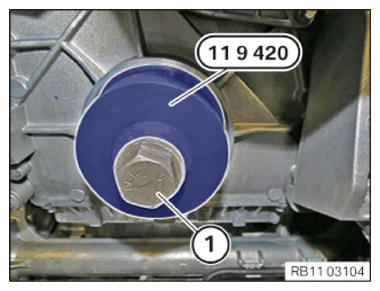

- Using the special tool 0 493 924 (11 9 420) and the central bolt (1), press the radial shaft seal flush into the lower timing case cover.
Follow-up work
- Refer to INSTALL THE VIBRATION ABSORBER .
- Refer to MOUNT THE SPECIAL TOOL ON THE VIBRATION ABSORBER .
- Refer to TIGHTEN THE CENTRAL BOLT .
- Refer to FASTEN CENTRAL BOLT WITH THE SPECIAL TOOL .
- Refer to SCREWING THE VIBRATION DAMPER .
- Refer to PUTTING ON THE DRIVE BELT .
- Refer to REMOVING SPECIAL TOOL ON BELT TENSIONER .
- Refer to INSTALLING THE LEFT-HAND CHARGE AIR COOLER .
- Refer to SECURING THE COOLANT EXPANSION TANK IN THE HOLDERS .
- Refer to INSTALL ACOUSTIC COVER .
- Refer to FILL THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
