Join the radial shaft seal bolts
NOTE:
TECHNICAL INFORMATION
Replace microencapsulated screws.
The screw lining must be completed within 15 minutes, as the hardening begins after this time period. Microencapsulated screws must not be retightened.

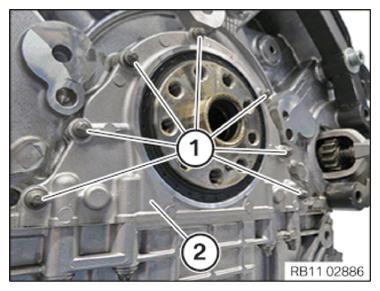

- Position the housing cover (2).
- Join the bolts (1) to 2 Nm.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
