Secure the bolts at the oil sump

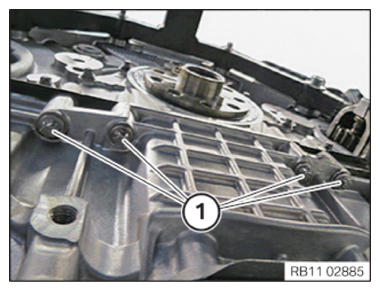

- Secure the bolts (1) on the oil sump.
TIGHTENING TORQUES SPECIFICATION
| Upper oil sump section to end cover |
M8x25 M8x45
M8x95
Replace microencapsulated screws. |
Tightening torque |
27 Nm |
