Removing the acoustic cover for the engine at the front

Preliminary work

• Refer to REMOVING THE ACOUSTIC COVER .
• Refer to REMOVE RESONATOR .

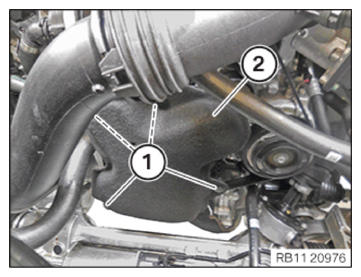

• Detach all expanding rivets (1).
• Guide the acoustic cover (2) out and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
