Install front engine encapsulation

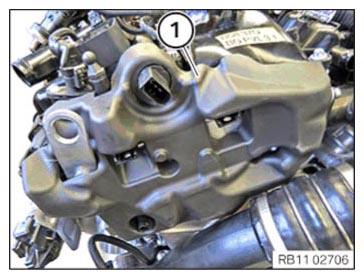

• Install the engine encapsulation (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

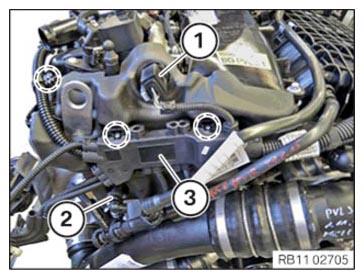

• Correctly route the wiring harness (3) and clip it in at the highlighted areas.
• If necessary, position the ground cable and secure it with the screw.
  TIGHTENING TORQUES SPECIFICATION



  Front ground cable to cylinder head
  M6	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and (2).
  NOTE: TECHNICAL INFORMATION
  Make sure that the connections are locked correctly. The locks must engage audibly.

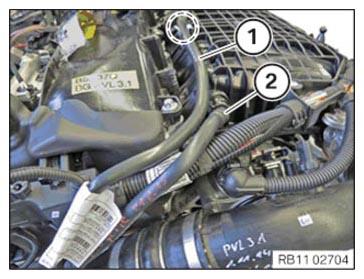

• Connect the ventilation line (2) with the intake plenum.
• Connect the ventilation line (1) with the tank vent valve and clip it in at the highlighted area.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL CLEAN AIR PIPE, TOP .
• Refer to INSTALLING INTAKE SILENCER HOUSING .
• Refer to INSTALL ACOUSTIC COVER .
