Install engine ventilation line
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.

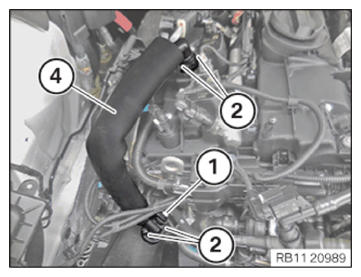

- Feed the engine ventilation line (4) onto the clean air pipe and install.
- Make sure that the locking mechanisms (2) audibly engage on the clean air pipe.
- Feed in the engine ventilation line (4) on the top of the cylinder head cover and install.
- Make sure that the locking mechanisms (2) audibly engage on the cylinder head cover.
- Connect and lock the connector (1).
- Make sure the connector (1) engages audibly.
Follow-up work
- Refer to INSTALL RESONATOR .
- Refer to INSTALLING ACOUSTIC COVER .
