Installing engine ventilation line of cylinder bank 1

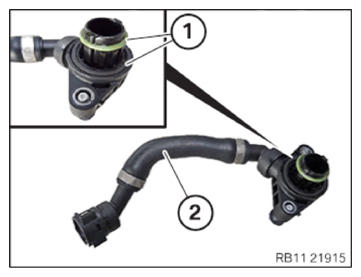

• Check the sealing rings (1) of the engine ventilation line (2) for correct fit and for damage, replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

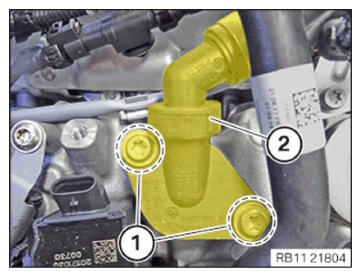

• Insert and position the engine ventilation line (2).
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Engine ventilation line
  screw	Tightening torque	9.3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

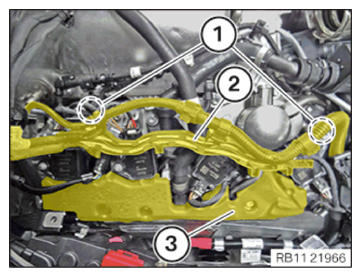

• Position the wiring harness (2).
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Wiring harness on the cylinder head cover
  M6x16 screw	Tightening torque	10 Nm
  Nut M6	Tightening torque	10 Nm

• Guide in and install cover (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Fastening the engine ventilation line of cylinder bank 1

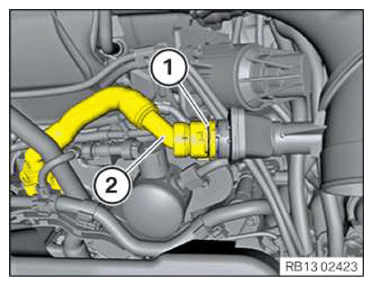

• Position engine ventilation line (2).
• Connect and lock retaining clip (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING CONTROL UNIT HOLDER FOR CYLINDERS 1 TO 4 .
• Refer to INSTALLING THE COVER OF THE RIGHT DME CONTROL UNIT .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to CONNECTING NEGATIVE BATTERY CABLE .
