Installing the rear timing case cover

Further information is available.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.

Do not use any metal-cutting tools.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

Remove seal residue in this area (1) using special tool 0 495 102 (11 4 470).
Clean the sealing surface (1) with brake cleaner.

CONSUMABLE - BRAKE CLEANER DESCRIPTION

Brake cleaner 2.0	500 ml, Spray can	83192365214
Brake cleaner 2.0	20, Canister	83192365215

NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.

Do not use any metal-cutting tools.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

Remove seal residue in this area (1) using special tool 0 495 102 (11 4 470).
Clean the sealing surface (1) with brake cleaner.

CONSUMABLE - BRAKE CLEANER DESCRIPTION

Brake cleaner 2.0	500 ml, Spray can	83192365214
Brake cleaner 2.0	20, Canister	83192365215

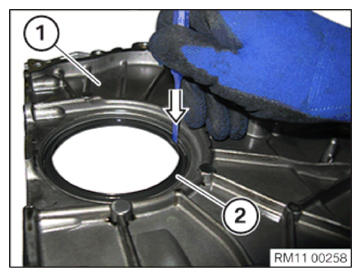

Position the timing case cover (1) underneath.
Position punch on inner side of crankshaft seal (2) .
Remove crankshaft sealing ring (2) in direction of arrow outward.

Check the fitting sleeves (1) for damage and replace as needed.
Check for correct fit of fitting sleeves (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

Have the special tool 2 469 803 ready.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (BMW PARTS CATALOGUE)

Position the sealing compound (1) as shown on the special tool 2 469 803.
Parts: Sealing compound

Courtesy of BMW OF NORTH AMERICA, INC.

SEALING COMPOUND SPECIFICATION

Loctite 5970 liquid sealing compound Processing time <10 minutes at room temperature

50 ml, Cartridge

83190404517

NOTE: TECHNICAL INFORMATION
The processing time of the liquid sealing compound can be at a maximum of 10 min.
Commissioning of the assembly is not possible until 25 minutes after the processing time.
Non-observance can lead to leaks in the assembly.

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 1: Timing Case Cover Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Apply the sealing compound in area (1) along the inner edge.

TECHNICAL DATA - HEIGHT OF SEALING BEAD SPECIFICATION

Height of the sealing bead
	2.0 mm... 2.5 mm

Replace screws (1) to (11) .
Parts: Screws

Carefully mount the timing case cover (A) .
Tighten screws in the order (1) to (11) .

TIGHTENING TORQUES SPECIFICATION

Rear timing case cover on crankcase
M6 x 31 Replace screws	Joining torque Angle of rotation	8 Nm 90°

Connect and lock the connector (1) .
Make sure the connector (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Radial shaft seal damage.
Taping the sealing lip (inner) and applying oil to the radial shaft seal will lead to its destruction.

Do not tap the sealing lip (inner) of the radial shaft seal.
Do not apply oil to the radial shaft seal.
Install the radial shaft seal dry.

Preassemble special tool 0 496 137 (11 8 815) on crankshaft.
Carefully slide the new crankshaft sealing ring (1) straight off the special tool 0 496 137 (11 8 815) using a rotational movement until the new crankshaft sealing ring is positioned parallel on the timing case cover.

Courtesy of BMW OF NORTH AMERICA, INC.
Secure special tool 0 494 029 (11 9 182) to the crankshaft using special tool 0 494 031 (11 9 184).

Courtesy of BMW OF NORTH AMERICA, INC.

Connect special tool 2 360 215 onto special tool 0 493 881 (11 9 180).

Courtesy of BMW OF NORTH AMERICA, INC.

Pull in the new crankshaft sealing ring with the special tool 0 494 028 (11 9 181) and 2 360 215 in combination with the special tool 0 494 030 (11 9 183).

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten the new crankshaft sealing ring using the tool (1) to the stop.

Courtesy of BMW OF NORTH AMERICA, INC.
