Remove central bass

Preliminary works

• Deactivate the 48 v ELECTRICAL SYSTEM .
• Remove front SEAT .

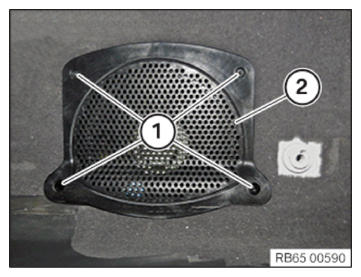

• Loosen screws (1).
• Remove the cover (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

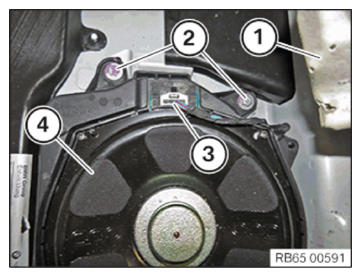

• Fold up the carpet (1) as shown.
• Loosen screws (2).
• Unlock and disconnect connector (3).
• Remove the central bass (4).
