Insert the piston ring end clearance in the cylinder

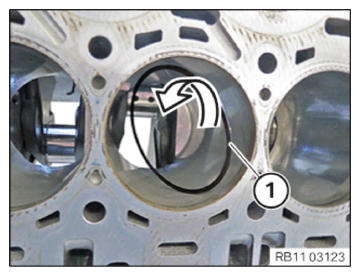

Insert the piston ring (1) into the cylinder to be measured and rotate by 90°.

G14191692

Courtesy of BMW OF NORTH AMERICA, INC.
