Home >> BMW >> 2017 >> 530i >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Mechanical >> Engine - Pistons/Counterbalance Shafts - Repair (G30) >> 11 25 Piston With Rings And Bolts >> 11 25 671 Replace the piston rings for all pistons (piston removed) (M550i xDrive, 2018-2019) >> Position the piston ring with the piston in the cylinder

Position the piston ring with the piston in the cylinder

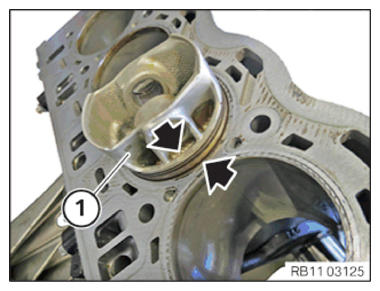

Use the piston (1) to push the piston ring in parallel to the last annular groove (see graphic).

G14253244

Courtesy of BMW OF NORTH AMERICA, INC.
