Remove the DVD player (small center console)
NOTE:
RISK OF DAMAGE Electrostatic discharge. Damage to or destruction of electrical components.
- Leave electrical components in original packaging until just before they are installed. Use the original packaging only for any return shipments. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35... NOTES for ESD protection (electrostatic discharge)
Preliminary works
- Deactivate the 48 v ELECTRICAL SYSTEM .
- Disconnect all battery EARTH LEADS .
- Remove the rear center console TRIM .
NOTE:
TECHNICAL INFORMATION
Due to the insufficient length of the wiring harness, the DVD player cannot be pulled out completely.
Due to the insufficient length of the wiring harness, the DVD player cannot be pulled out completely.
NOTE:
RISK OF DAMAGE, Damage to wires when disconnecting connectors and plug connections. Sheared wires can cause a short circuit.
- Do not pull on the wires when disconnecting connectors and plug connections.

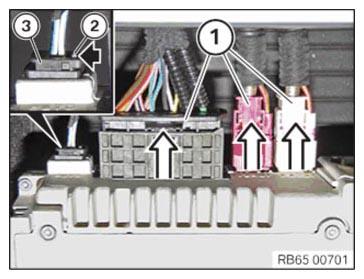

- Unlock and disconnect plug connections (arrows) (1) downwards using a suitable tool.
- Very carefully unlock and disconnect tab (2) on plug connection (3) in the direction of the arrow using a suitable tool.

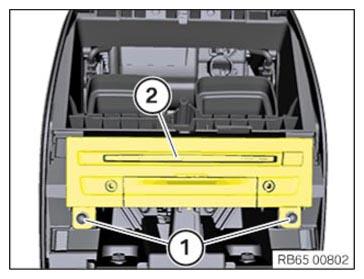

- Take out DVD player.
