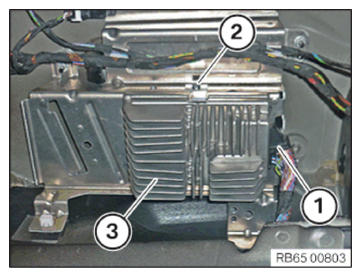

Remove amplifier
NOTE:
RISK OF DAMAGE Electrostatic discharge. Damage to or destruction of electrical components.
- Leave electrical components in original packaging until just before they are installed. Use the original packaging only for any return shipments. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35... NOTES for ESD protection (electrostatic discharge)
Preliminary works
- Deactivate the 48 v ELECTRICAL SYSTEM .
- Disconnect all battery EARTH LEADS .
- Remove the loading EDGE TRIM .
- Partially remove the left luggage compartment wheel arch TRIM PANEL .
- Remove STORAGE COMPARTMENT .
NOTE:
RISK OF DAMAGE Sensitive optical fibres. Damaged optical fibres can result in operating failure of the LED.
- Do not bend optical fibres too much and do not kink, as well. The minimum permissible bending radius is 25 mm.
- Avoid pressure and tensile loads and heat influences on the optical fibre.
