Installing the amplifier

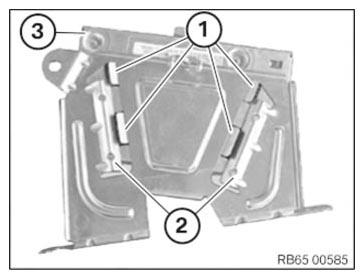

- The tabs (1) of the amplifier (3) must be correctly pushed into the guides (2) on the bracket.
- Push the amplifier (3) towards the bottom into the holder.
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Amplifier/RAM on holder | ||
| M5 screw | Tightening torque | 3 Nm |
| Nut | Tightening torque | 3 Nm |
- Connect plug connection (1) and lock.
Follow-up Work
- Install STORAGE COMPARTMENT .
- Install left luggage compartment wheel arch TRIM PANEL .
- Install loading EDGE TRIM .
- Connect all battery EARTH LEADS .
- Activate the 48 v ELECTRICAL SYSTEM .
- ENCODE/PROGRAM control unit(s)
