Installing the electric changeover valve for the engine mount

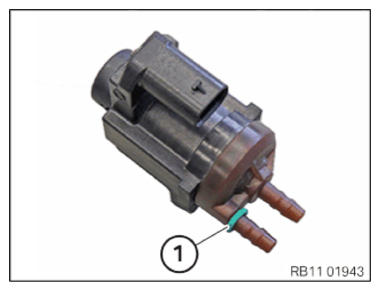

• Note that the green O-ring (1) marks the connection of the controlled vacuum.

  Courtesy of BMW OF NORTH AMERICA, INC.

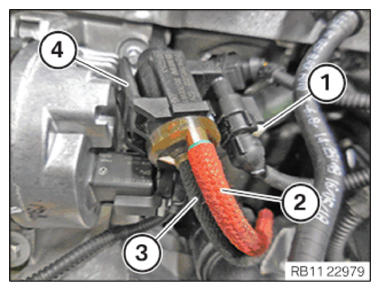

• Carefully  insert the vacuum hoses (2) and (3) on the electric changeover valve (4).
• Connect connectors (3) and lock.

  The connector (3) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

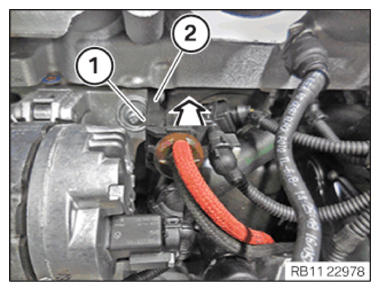

• Feed in and install the electric changeover valve (2) in the direction of the arrow.
• Ensure that the locking mechanism (1) engages audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up works

• Refer to INSTALLING INTAKE PLENUM .
• Refer to INSTALLING THE TANK VENT VALVE .
• Refer to INSTALLING CONTROL UNIT BRACKET .
• Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
• Refer to INSTALLING THE DME CONTROL UNIT .
• Refer to INSTALLING RESONATOR .
• Refer to CONNECTING NEGATIVE BATTERY CABLE .
• Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
