Removing the lambda oxygen sensor

Preliminary work

• Refer to REMOVING THE SEAL FOR THE HOOD REAR .
• Refer to REMOVING THE ACOUSTIC COVER .
• Refer to REMOVING ACOUSTIC COVER AT REAR .

Lambda control sensor

Courtesy of BMW OF NORTH AMERICA, INC.

1 Lambda control sensor

Courtesy of BMW OF NORTH AMERICA, INC.

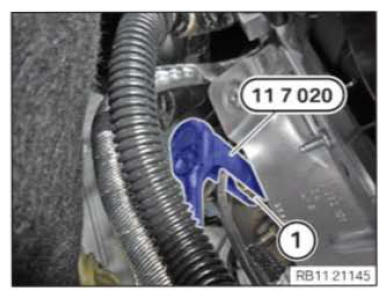

• Unlock the plug connection (1) with the screwdriver (2) and release it from the carrier plate.

  Courtesy of BMW OF NORTH AMERICA, INC.

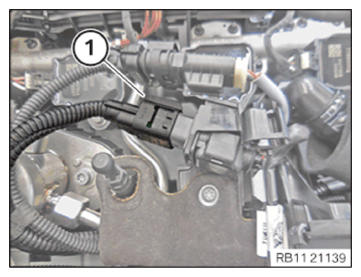

• Unlock and release plug connection (1).
• Unlock the locks (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

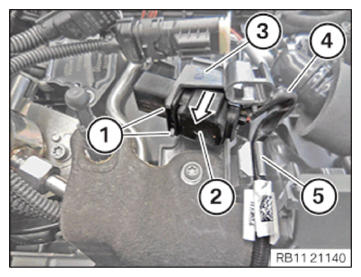

• Feed out the connector (2) from the holder (3) in the direction of arrow and self it aside.
• Release the cable (4) from the clamp (5)

Courtesy of BMW OF NORTH AMERICA, INC.

• Version A (with out mid hybrid technology)

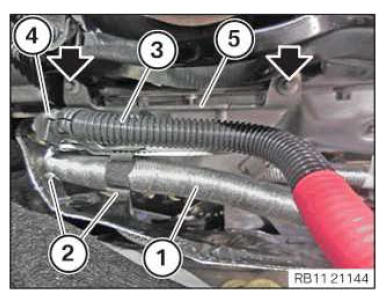

  Remove positive battery cable (1) from clamps (2)

  Remove the positive battery cable (3) from thew clamp (4)

  Remove screw (arrows)

  Feed out the bracket (5) of the positive buttery cable and set it aside

Courtesy of BMW OF NORTH AMERICA, INC.

• Version B (with mid hybrid technology)

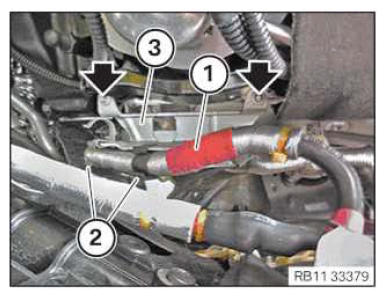

  Remove positive battery cable (1) from clamps (2)

  Remove screw (arrows)

  Feed out the bracket (5) of the positive buttery cable and set it aside

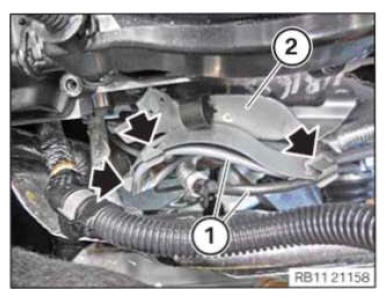

• Release the cable (1) from the clamps (arrows)
• Feed out and remove the bracket (2) of the positive battery cable

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

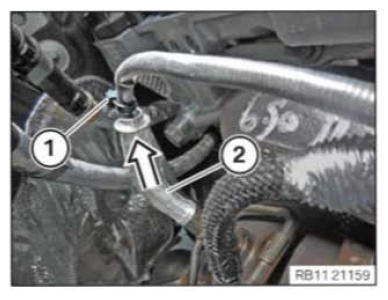

• Release the cable (1)
• Guide out the heat protection shield (2) in the direction of the arrow and set it aside

Courtesy of BMW OF NORTH AMERICA, INC.

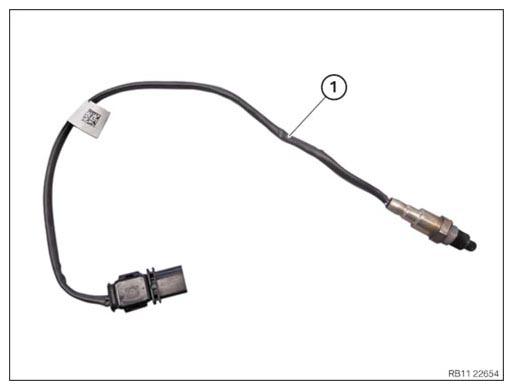

• Release the and remove the Lambda oxygen sensor (1) with the special tools 0491 074 (117020)
• Feed out and remove the bracket (2) of the positive battery cable
