Replacing the Lambda oxygen sensor

Preliminary work

• Refer to REMOVING THE ACOUSTIC COVER .
• Refer to REMOVING INTAKE SILENCER HOUSING .
• Refer to REMOVING THE RESONATOR WITH THE TOP CLEAN AIR PIPE .

Removing the lambda oxygen sensor

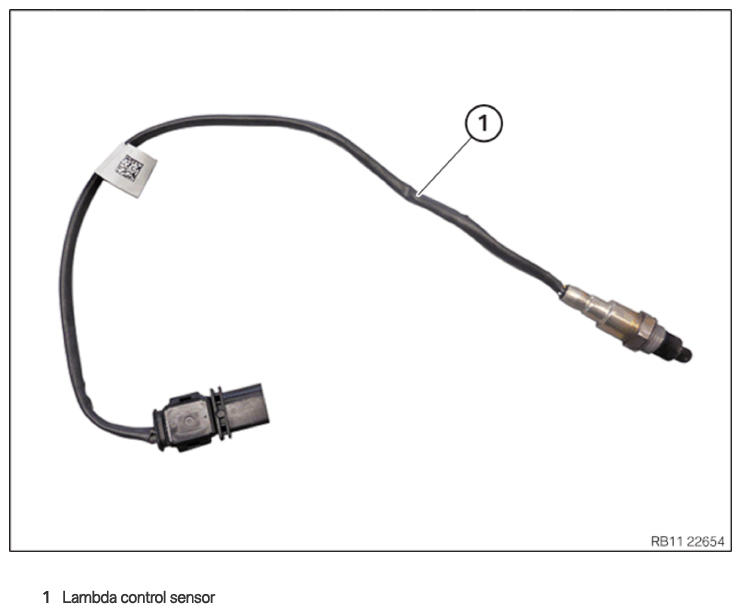

Lambda control sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

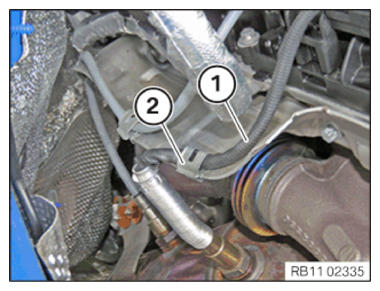

• Detach the cable (1) from the clamp (2).

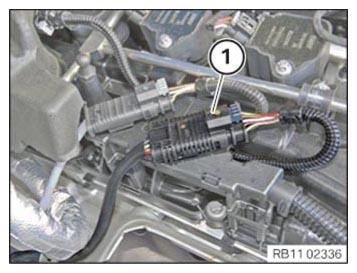

• Unlock and disconnect connector (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

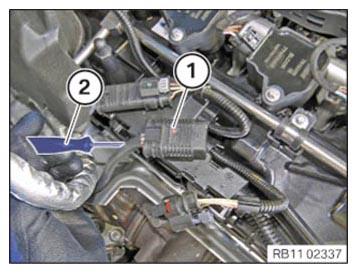

• Unlock the connector (1) with the screwdriver (2) and detach it off from the carrier plate.

  Courtesy of BMW OF NORTH AMERICA, INC.

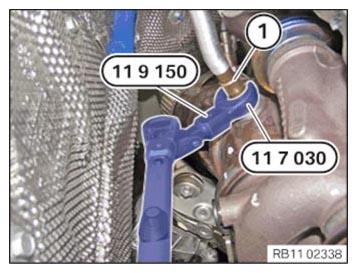

• Release the Lambda oxygen sensor (1) with the special tools 0 493 751 (11 9 150) and 0 491 075 (11 7 030).
• Remove the Lambda oxygen sensor (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Installing Lambda oxygen sensor

  NOTE: Grease the threads of new oxygen sensors thinly and evenly.
  NOTE: For oxygen sensors that are reused, the following should be observed:
  NOTE: Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
  NOTE: For additional information see: OVERVIEW OF CONSUMABLES (BMW PARTS CATALOGUE) .

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: For additional information see: OVERVIEW OF CONSUMABLES (BMW PARTS CATALOGUE) .

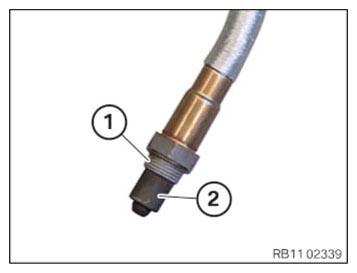

  • (1) = Thread
  • (2) = Sensor ceramics
  NOTE: The cable of the Lambda oxygen sensor is black. The installation location of the Lambda oxygen sensor is in front of the catalytic converter.
• Screw in the Lambda oxygen sensor (1).
• Tighten the Lambda oxygen sensor (1) with the special tools 0 493 751 (11 9 150) and 0 491 075 (11 7 030).

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connector (1) and attach it to the carrier plate.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the cable (1) in the clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE RESONATOR WITH THE TOP CLEAN AIR PIPE .
• Refer to INSTALLING INTAKE SILENCER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
