Remove front speaker holder

Preliminary works

• Remove the right instrument panel SIDE PANEL .
• Remove the finisher on the right INSTRUMENT PANEL .
• Remove CENTRAL INFORMATION DISPLAY  (CID).
• Remove the speaker trim at the INSTRUMENT PANEL .
• Remove the mid-range speaker from the INSTRUMENT PANEL .

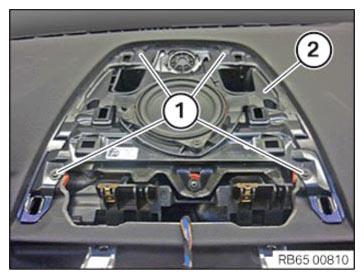

• Loosen screws (1).
• Lift up and turn over the speaker holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

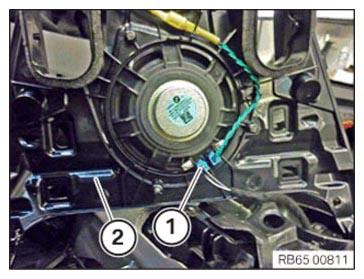

• Disconnect plug connection (1).
• Remove the speaker holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
