Oil Pressure Switch, Reduced Oil Pressure Switch, Oil Pressure Switch, Level 3, Throttle Valve Control Module, Knock Sensor 1, Engine/Motor Control Module

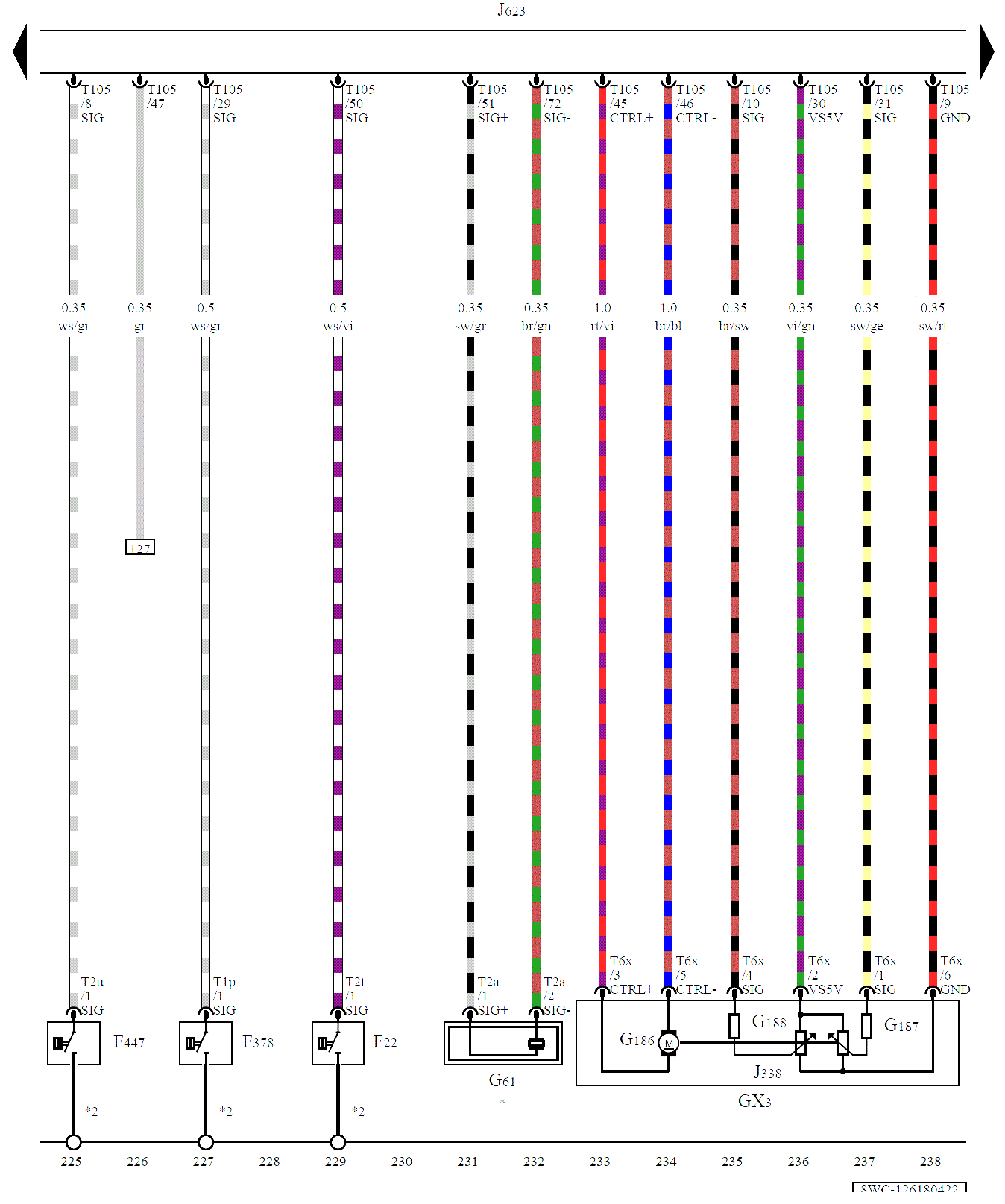

GWW8WC-126180122Courtesy of AUDI OF AMERICA, LLC

F22

Oil Pressure Switch Type:BT, Slpdok:, Aim:BTF22

F378

Reduced Oil Pressure Switch Type:BT, Slpdok:, Aim:BTF378

F447

Oil Pressure Switch, Level 3

GX3

Throttle Valve Control Module

G61

Knock Sensor 1 Type:BT, Slpdok:, Aim:BTG61

G186

EPC Throttle Drive Type:BT, Slpdok:, Aim:BTG186

G187

EPC Throttle Drive Angle Sensor 1 Type:BT, Slpdok:, Aim:BTG187

G188

EPC Throttle Drive Angle Sensor 2 Type:BT, Slpdok:, Aim:BTG188

J338

Throttle Valve Control Module Type:BT, Slpdok:, Aim:BTJ338

J623

Engine/Motor Control Module, In the Engine/Motor Compartment, Left Front Type:BT, Slpdok:, Aim:BTJ623

T1p

1-Pin Connector, Black

T2a

2-Pin Connector, Black

T2t

2-Pin Connector, Black

T2u

2-Pin Connector, Black

T6x

6-Pin Connector, Black

T105

105-Pin Connector, Black

Pre-Wired Component

*2  Ground Supply via the Housing
