OUTER REAR COOLANT PIPE ON Electric Drive Power and Control Electronics -JX1-, REMOVING AND INSTALLING: Removing
-- Drain the coolant. Refer to COOLANT, DRAINING, HIGH-VOLTAGE COOLING CIRCUIT .
-- Remove the left front underbody trim panels. Refer to OVERVIEW - UNDERBODY TRIM PANELS .

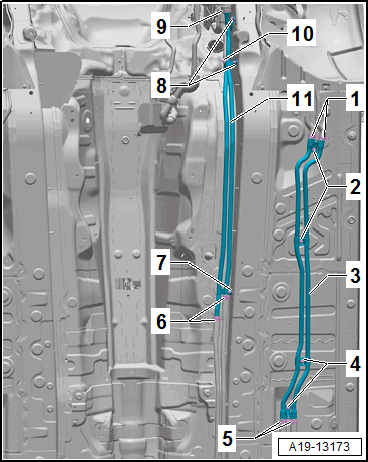

-- Remove the nuts -2 and 4-.
CAUTION:
There is a risk of damaging the straps on the plastic coolant pipes if they are handled incorrectly.
- Counterhold at the coolant pipe when disconnecting and connecting the coolant hose.
-- Loosen the hose clamps -1 and 5- and remove the coolant hoses.
-- Remove the coolant pipes -3-.
