Overview - Radiator, Vehicles With High-Voltage System

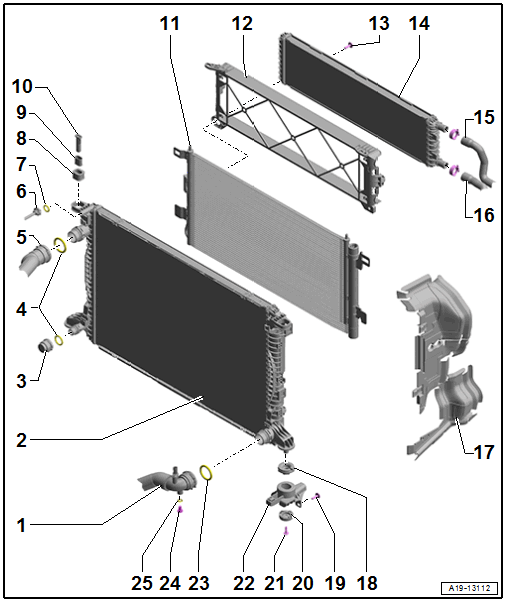

Fig 1: Exploded View Of Radiator (Vehicles With High-Voltage System)

Courtesy of AUDI OF AMERICA, LLC

1. Coolant Hose
   • Lift the clamp to remove
   • Connecting. Refer to Figure.
2. Radiator
   • Removing and Installing. Refer to RADIATOR, REMOVING AND INSTALLING .
   • If there are small impressions on the fins. Refer to RADIATOR AND CONDENSER ASSEMBLY .
   • After replacing, replace entire amount of coolant
3. Plugs
   • Lift the clamp to remove
4. O-Rings
   • Replace after removing
5. Coolant Hose
   • Lift the clamp to remove
   • Connecting. Refer to Figure.
6. Coolant Line
   • To the coolant expansion tank
   • To remove, press the release ring
   • Connecting. Refer to Figure.
7. O-Ring
   • Replace after removing
8. Rubber Bushing
   • For the radiator
9. Sleeve
10. Retaining Pin
    • Disengage and remove using the screwdriver
11. Condenser
12. Bracket
    • For auxiliary radiator
13. Bolt
    • 9 Nm
14. Auxiliary Radiator
    • There are different versions. Refer to the Electronic Parts Information (ETKA).
    • If there are small impressions on the fins. Refer to RADIATOR AND CONDENSER ASSEMBLY .
    • Removing and Installing. Refer to AUXILIARY RADIATOR, REMOVING AND INSTALLING .
15. Coolant Hose
16. Coolant Hose
17. Air Duct
18. Rubber Bushing
    • For the radiator
19. Bolt
    • 5 Nm
20. Backing Plate
21. Bolt
    • 4.5 Nm
22. Radiator Bracket
    • There are different versions. Refer to the Electronic Parts Information (ETKA).
23. O-Ring
    • Replace after removing
24. Plug
    • Do not open
25. O-Ring
    • Not available separately.
