Oil Pressure Switch -F22-, REMOVING AND INSTALLING

Procedure

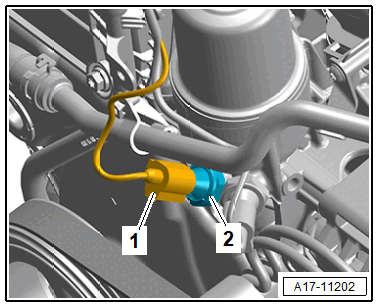

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Place a cloth under the sub-assembly bracket to catch any escaping engine oil.

-- Remove the Oil Pressure Switch -F22- -2- (example illustration).

• Replace the seal after removal.

-- To prevent oil loss, install the new oil pressure switch immediately.

-- Check the oil level. Refer to ENGINE OIL .

Tightening Specifications

• Refer to OVERVIEW - OIL PRESSURE SWITCH/OIL PRESSURE REGULATION
