Camshaft Timing Chain, Removing And Installing: Notes

Special tools and workshop equipment required

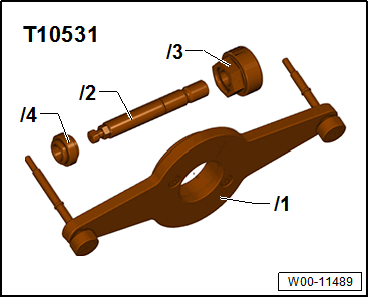

• Vibration Damper Assembly Tool: T10531
  Fig 1: Assembly Tool Set T10531

  Courtesy of AUDI OF AMERICA, LLC

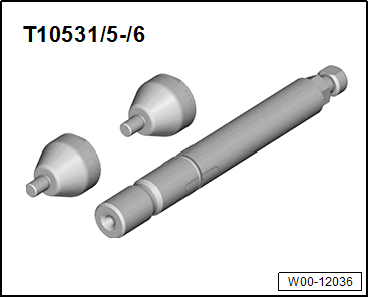

• Vibration Damper Assembly: T10531/5-/6
  Fig 2: Vibration Damper Assembly

  Courtesy of AUDI OF AMERICA, LLC

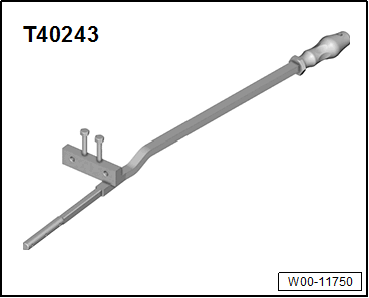

• Chain Tensioner Lever: T40243
  Fig 3: Chain Tensioner Lever

  Courtesy of AUDI OF AMERICA, LLC
• Wrench - 21mm: T40263
  Fig 4: Identifying Wrench - 21mm

  Courtesy of AUDI OF AMERICA, LLC

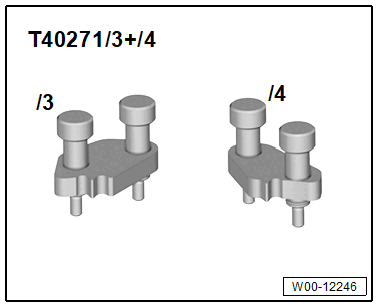

• Camshaft Locks: T40271/3+/4

  Courtesy of AUDI OF AMERICA, LLC

• Adapter: T40314
  Fig 5: Adapter T40314

  Courtesy of AUDI OF AMERICA, LLC

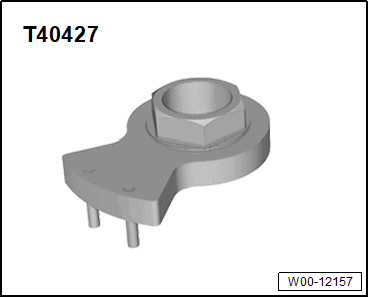

• Assembly Tool: T40427

  Courtesy of AUDI OF AMERICA, LLC

• Locking Tool Locking Tool: T40435  , not illustrated
