Sliding Bar Ball, Installing

Special tools and workshop equipment required

• Camshaft Spacer: T40191

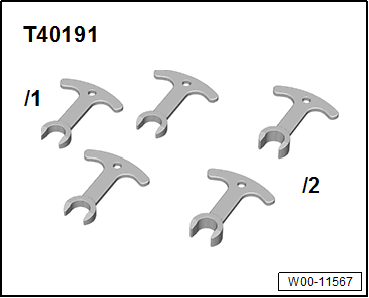

  Fig 1: Camshaft Spacer T40191

  Courtesy of AUDI OF AMERICA, LLC

Installing

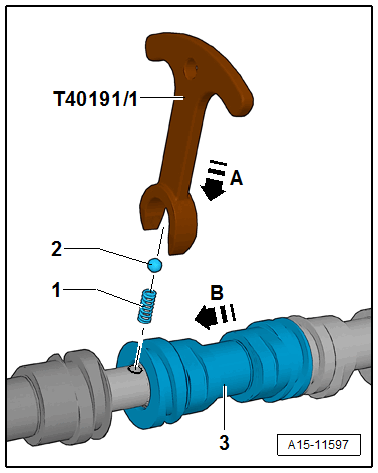

Fig 2: Inserting Spring And Ball Into Camshaft

Courtesy of AUDI OF AMERICA, LLC

-- Insert the spring -1- in the camshaft.

-- Place the ball -2- on the spring in the camshaft.

-- Push the ball and spring downward in the direction of -arrow A- using the Camshaft Spacer: T40191/1  and hold in place.

-- Push the sliding bar -3- in the direction of -arrow B-.
