Valve Stem Seals, Removing And Installing, Cylinder Head Removed: Notes

Special tools and workshop equipment required

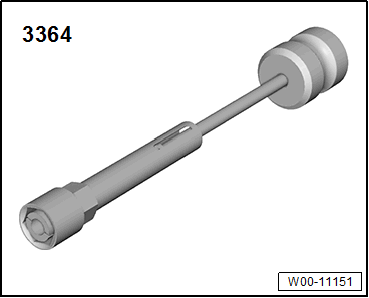

• Puller - Valve Seal: 3364
  Fig 1: Identifying Puller - Valve 3364

  Courtesy of AUDI OF AMERICA, LLC

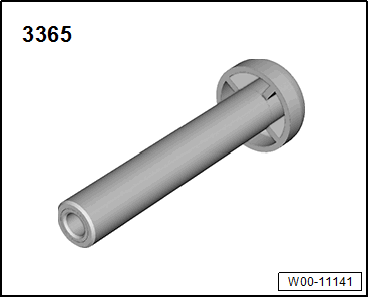

• Seal Installer - Valve Stem: 3365  for the valve stem seal with a single sealing lip. Refer to Figure.
  Fig 2: Identifying Seal Installer - Valve Stem 3365

  Courtesy of AUDI OF AMERICA, LLC

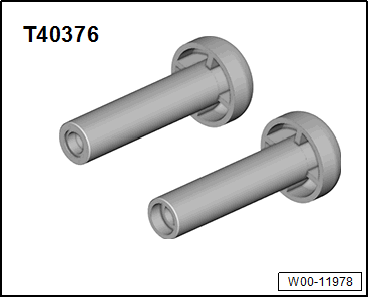

• Fitting Tool: T40376A  for the valve stem seal with a double sealing lip. Refer to Figure.
  Fig 3: Exhaust side: Fitting Tool

  Courtesy of AUDI OF AMERICA, LLC

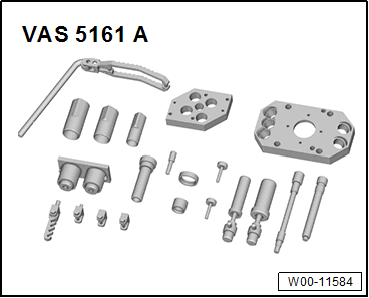

• Valve Keeper Tool Kit: VAS5161A  with the Valve Cotter Tool Kit - Guide Plate: VAS5161/44
  Fig 4: Valve Keeper Tool Kit VAS5161A

  Courtesy of AUDI OF AMERICA, LLC

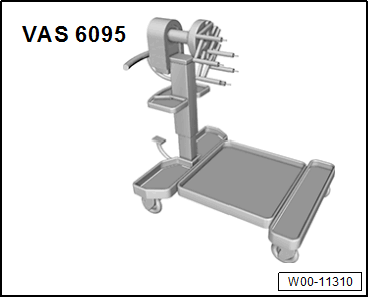

• Engine and Gearbox Bracket: VAS6095A
  Fig 5: Engine And Transmission Holder

  Courtesy of AUDI OF AMERICA, LLC

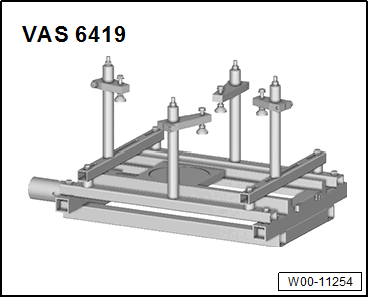

• Cylinder Head Tensioning Device: VAS6419
  Fig 6: Cylinder Head Tensioning Device

  Courtesy of AUDI OF AMERICA, LLC

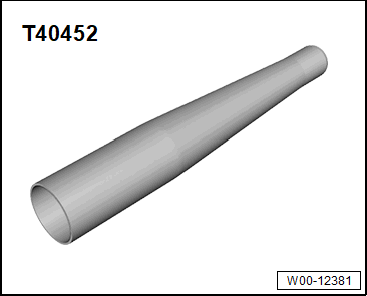

• Assembly Tool: T40452

  Courtesy of AUDI OF AMERICA, LLC
