Valve Dimensions

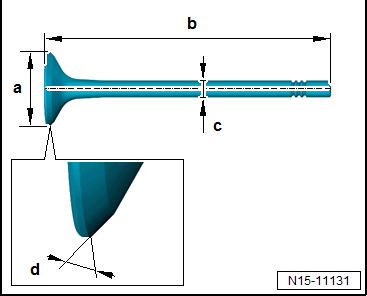

GWWN15-11131Courtesy of AUDI OF AMERICA, LLC
Dimension Intake Valve Exhaust Valve
Diameter a mm 33.85 ± 0.10 28.0 ± 0.1
b mm 103.97 101.87
average c mm 5.92 ± 0.02 5.92 ± 0.02
d ∠° 45 45
