Transmission Mount, Removing And Installing
Transmission Support, Removing with Transmission Mount
-- Remove the tunnel crossmember. Refer to OVERVIEW - ASSEMBLY MOUNTS .

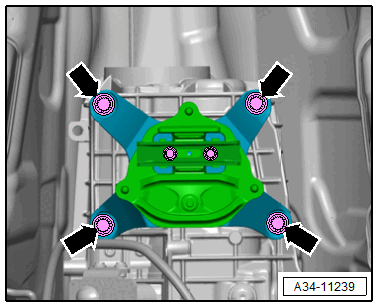

-- Remove the bolts -arrows- and remove the transmission support with the transmission mount from the transmission.
Transmission Mount, Removing

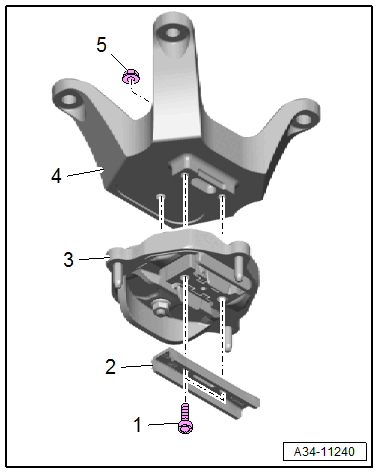

-- Remove the bolts -1- and remove the stop -2- for the transmission mount.
-- Remove the nut -5- and remove the transmission mount -3- from the transmission support -4-.
Installing
-- Tighten the nut -5- hand-tight.
-- Tighten the bolts -1- and then the nut -5-.
Further installation is performed in reverse order of the removal.
Tightening Specifications
- Refer to OVERVIEW - ASSEMBLY MOUNTS .
