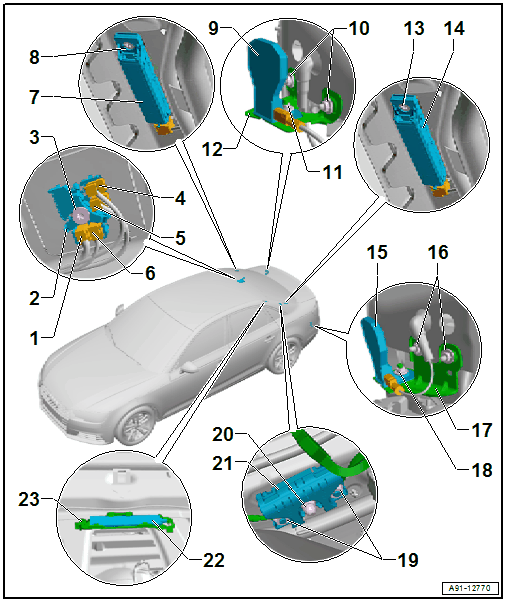

Component Location Overview - Antenna Systems, Sedan, RUSSIA Only

Courtesy of AUDI OF AMERICA, LLC

1. RC Connection from Auxiliary Heater Antenna -R182-
2. Roof Antenna -R216-
   • Antenna assignment depends on vehicle equipment
   • Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
3. Bolt
   • 5 Nm
4. GPS Connection from GPS Antenna -R50-
5. Not Assigned
6. GSM connection from Emergency Call Module Antenna -R263-
7. Antenna Amplifier -R24-
   • Removing and Installing. Refer to Antenna Amplifier -R24-, REMOVING AND INSTALLING, SEDAN .

     - TV Antenna Amplifier 1 -R82-

   • Removing and Installing. Refer to TV Antenna Amplifier 1 -R82-, REMOVING AND INSTALLING, SEDAN .
8. Bolt
   • 2 Nm
9. Telephone Antenna -R65-
   • Only on 9ZE
   • Removing and Installing. Refer to GSM ANTENNA, REMOVING AND INSTALLING .
10. Nut
    • Quantity: 2
    • 3 Nm
11. Nut
    • 3 Nm
12. Bracket
13. Bolt
    • 2 Nm
14. Antenna Amplifier 2 -R111-
    • Removing and Installing. Refer to Antenna Amplifier 2 -R111-, REMOVING AND INSTALLING, SEDAN .

      - TV Antenna Amplifier 2 -R83-

    • Removing and Installing. Refer to TV Antenna Amplifier 2 -R83-, REMOVING AND INSTALLING, SEDAN .
15. LTE Antenna 1 -R297-
    • Only for EL3
    • Removing and Installing. Refer to LTE ANTENNAS, REMOVING AND INSTALLING, SEDAN, RUSSIA ONLY .
16. Nut
    • Quantity: 2
    • 3 Nm
17. Bracket
18. Nut
    • 3 Nm
19. Nut
    • Quantity: 2
    • 9 Nm
20. Nut
    • 9 Nm
21. Windshield Antenna Suppression Filter -C18-
    • Removing and Installing. Refer to Windshield Antenna Suppression Filter -C18-, REMOVING AND INSTALLING, SEDAN .
22. LTE Antenna 2 -R306-
    • Only for EL3
    • Removing and Installing. Refer to LTE ANTENNAS, REMOVING AND INSTALLING, SEDAN, RUSSIA ONLY .
23. Bracket
