Example #2 - Voltage Controlled Driver

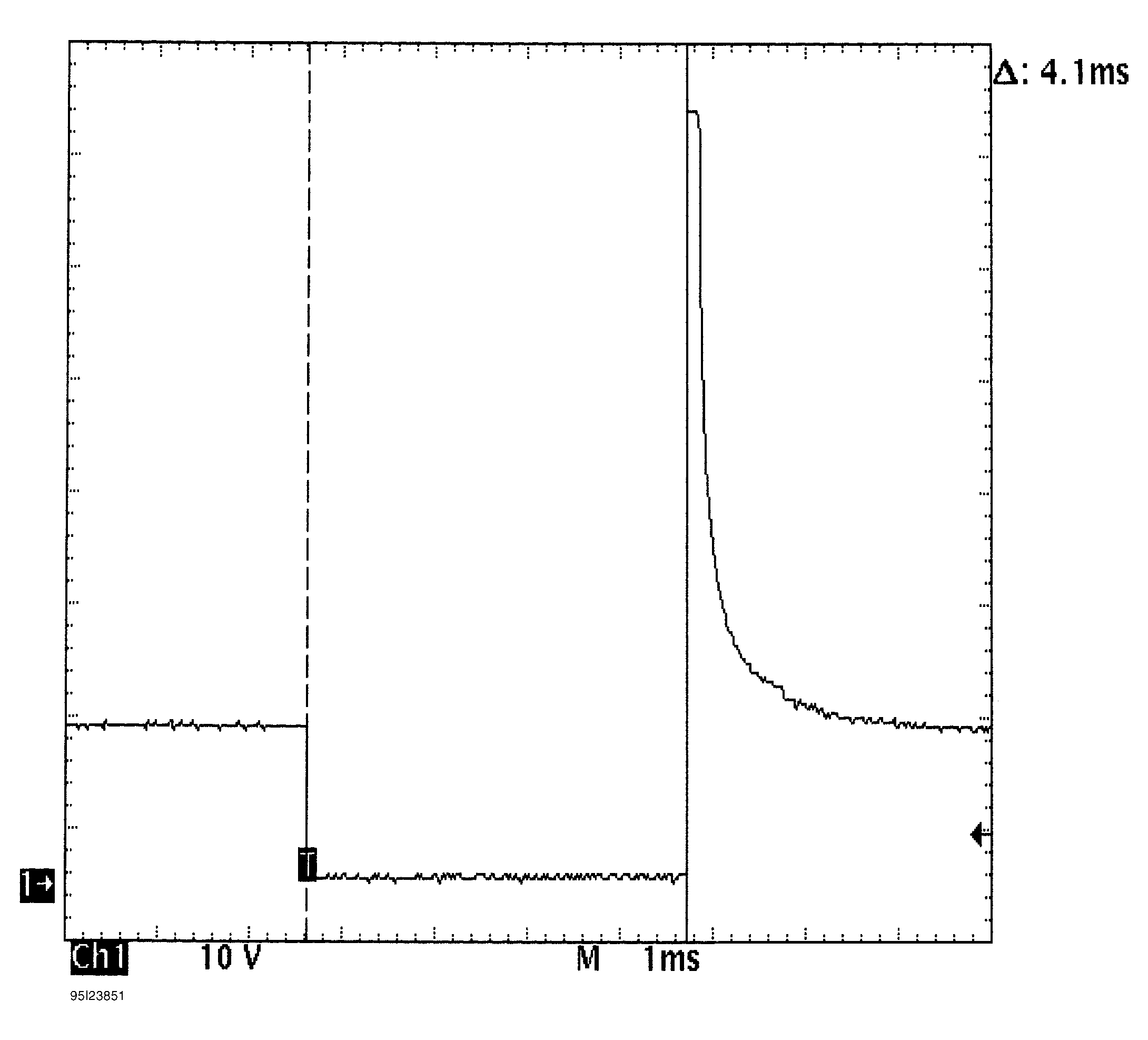

The known-good waveform pattern in Fig. Fig 1 is from a GM 3.8L V6 PFI VIN [3]. It was taken during hot idle, closed loop and no load.
The known-good waveform pattern in Fig. Fig 1 is from a GM 3.8L V6 PFI VIN [3]. It was taken during hot idle, closed loop and no load.
