Example #7 - Current Controlled Driver

This known-good waveform from a Ford 5.0L V8 CFI VIN [F] was taken during hot idle, closed loop, and no load. See Fig 1.

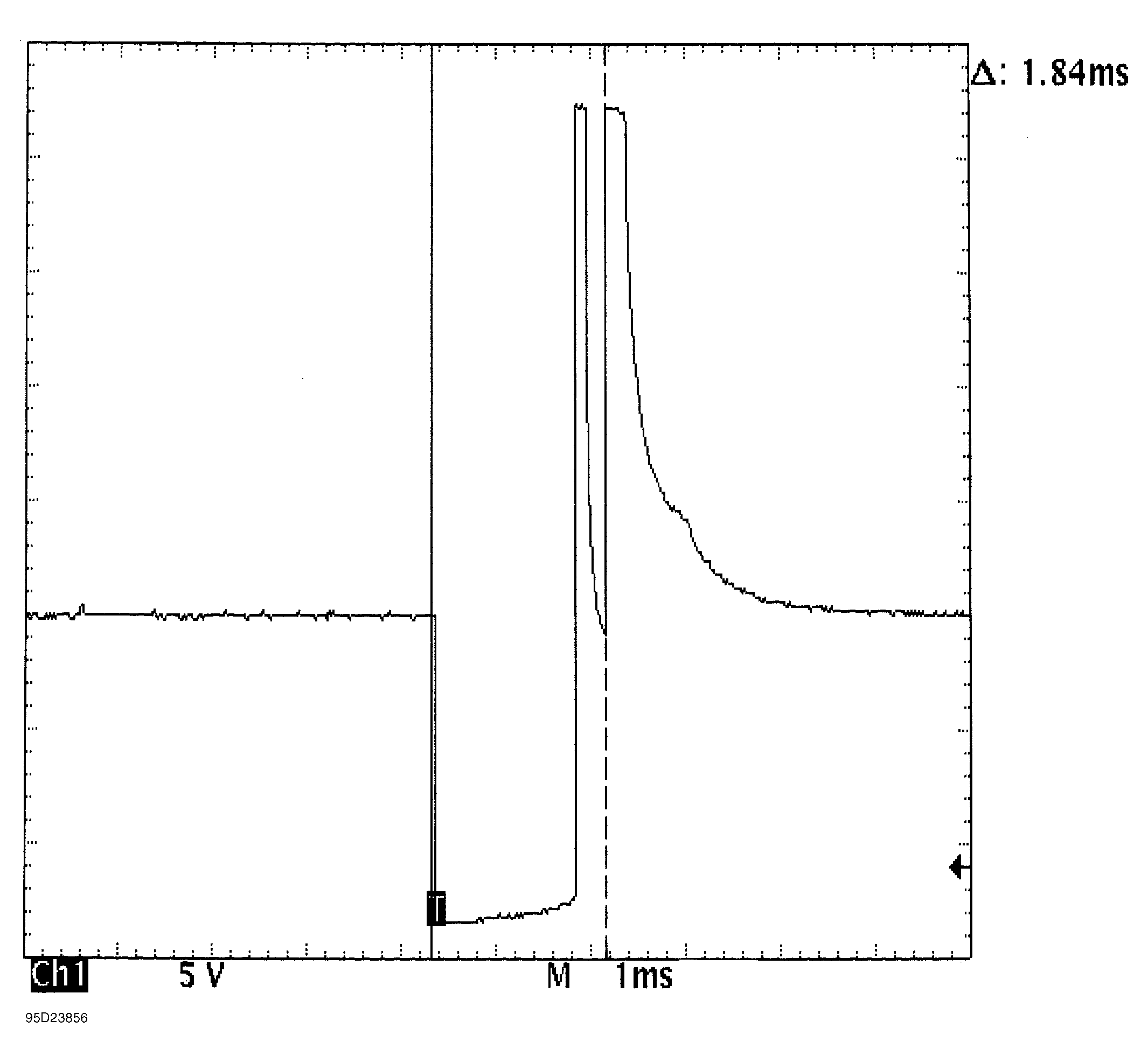

Fig 1: Single Injector - Known Good - Voltage Pattern
